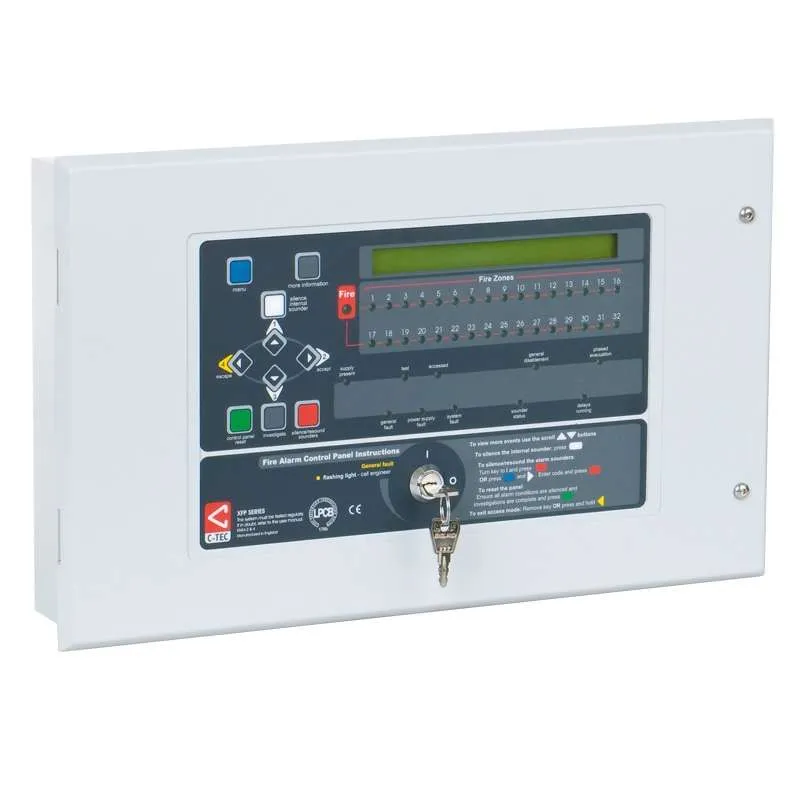

C-TEC XFP 2 Loop 32 Zone Addressable Fire Alarm Panel

• Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
• Compatibility with Apollo’s XP95/Discovery protocol.
• Two independently programmable conventional sounder circuits.
• A fault output relay and three programmable relay outputs with voltage free changeover contacts.
• A selection of zone dependency/coincidence functions.
• A day/night (building occupied/unoccupied) function.
• An alarm counter that records how many times the panel has been in alarm state.
• Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
• An integral EN54-4/A2 switch mode power supply.
• An investigation delay period function.
• Combined keypad / key switch entry to Access Levels 2 and 3.
• An intuitive Windows based upload-download PC program.
• Optional flush-mounting bezel and glazed stainless steel enclosure also available.
• Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network.
• Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.
