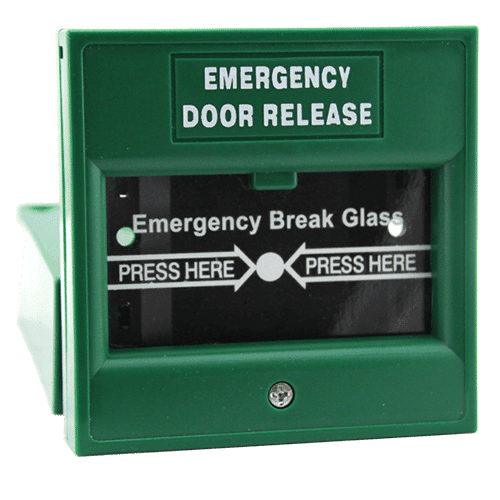

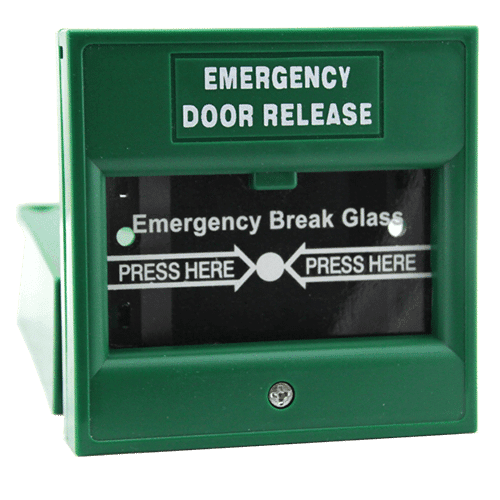

Emergency Break Glass Access Control Door Release Emergency Exit

Emergency Break Glass Access Control Door Release Emergency Exit

A glass broken button, also called the emergency push button, is a series in the electric lock loop, to prevent the entrance guard system of the card reader, push button or controller hardware failure inside personnel dozen don’t open the door. Locked in the room, when faced with the above situation press the emergency push button and the lock power will be disconnected, and the door is opened.
Specifications:
Dimensions:86Lx86Wx50H(mm)
Standard Structure: Fireproof Material, Easy to install
Current Rating:3A 36VDC Max
Output Contact: NONCCOM
Suitable for Door: Exit Door, Emergence Door
Operating temp:10~+55°C(14-131F)
Operating Humidity:0-95% (non-condensing)
Material Selection: Fireproof Material, Sandblast Finished
